Overview
The Automatic Cartoning Machine, independently designed and developed by Foshan Senyo Automation Packaging Equipment Co., Ltd., is a fully automated packaging line tailored to the current industrial landscape where many production enterprises still rely heavily on manual labor. Aligning with the trend of Industry 4.0 smart manufacturing, this packaging line is widely used in industries such as fasteners, screws, nails, and steel nails, and can be extended to packaging fields like food, plastics, electronics, and automotive.
The packaging line can fully automate the entire packaging process, including feeding, weighing, sorting, case erecting, carton loading, sealing, labeling, and palletizing.
Features
- Industrial-grade construction with ergonomic design ensures long-term stable operation and easy maintenance.
- Touch screen paired with PLC control system, Formula storage and retrieval, production capacity statistics, human-machine interaction, easy to operate.
- Can automatically complete processes such as feeding, loading, weighing, and conveying, etc.
- Optoelectronic automatic tracking, with no action when there is no material, shutdown alarm, etc, Ensure that every step is precise and error free.
- Advanced weighing system, fast running speed, high accuracy, and strong anti-interference ability.
- Recipes and parameters can be stored and used for production with a single click, making it simple and fast.
- Reduce dependence and errors on workers, lower customer complaint rates, improve overall efficiency, and achieve true cost reduction and efficiency improvement.
- Modular design, Relevant equipment and functions can be added or removed according to demand， easy to expand and upgrade.

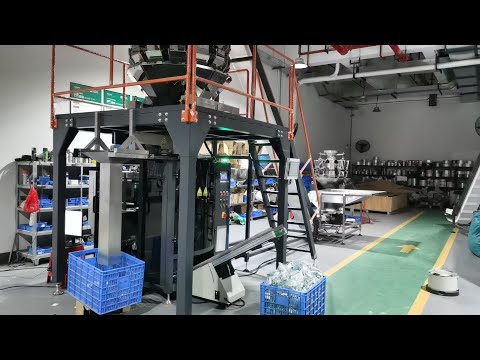

Video
Equipment Parameters
| Model | DXD-520T10 |
| Production speed | 10-100 bags/min |
| Packing size | W20-250mm, L30-380mm |
| Max film width | 520mm |
| Packing film material | OPP/CPP, PA/PE, PET/PE |
| Power | AC220-380V/50-60Hz/4kW |
| Air pressure | 0.6-0.8Mpa |
| Equipment weight | 1100kg |
| Machine size | L6018mm, W2520mm, H3665mm |
