Overview

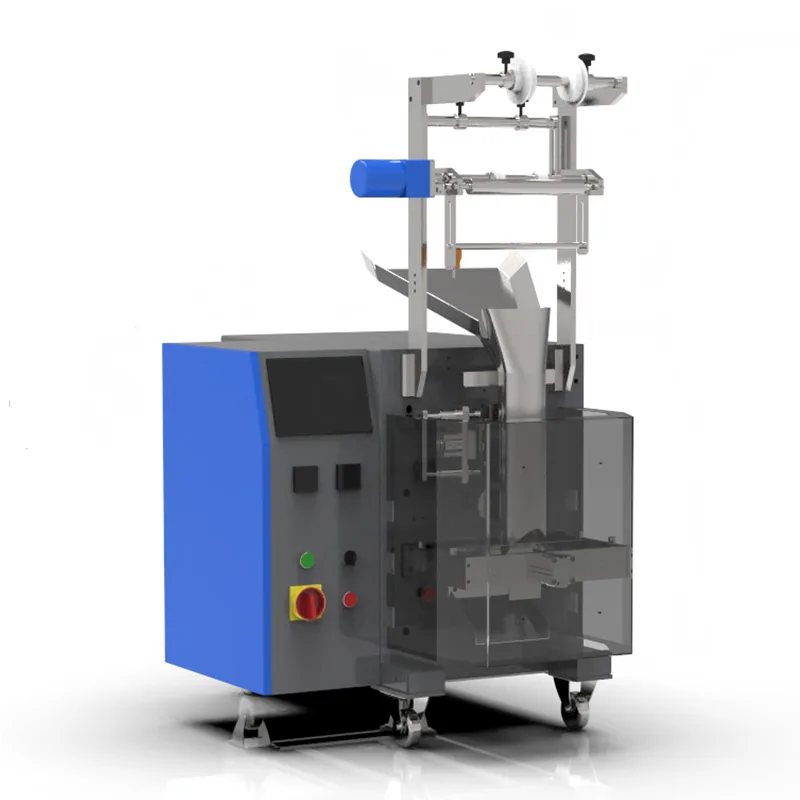

Vertical packaging machines are automated packaging equipment widely used in industries such as hardware, fasteners, rubber and plastics, food, chemicals, and pharmaceuticals. They employ a vertical design, using roll film or paper to package products, efficiently and accurately completing a series of operations including bagging, metering, and sealing. Suitable for various materials including powders, granules, liquids, and irregular shapes. This equipment features intelligent control, high stability, and energy efficiency, significantly improving production efficiency and packaging quality, reducing labor costs, and adapting to large-scale production needs.
Features
- Industrial-grade construction with ergonomic design ensures long-term stable operation and easy maintenance.
- Touch screen paired with PLC control system, Formula storage and retrieval, production capacity statistics, human-machine interaction, easy to operate.
- Can automatically complete processes such as feeding, sorting, counting, bag making, loading, sealing, and finished product transportation, etc.
- Optoelectronic automatic tracking, with no action when there is no material, shutdown alarm, etc, Ensure that every step is precise and error free.
- Recipes and parameters can be stored and used for production with a single click, making it simple and fast.
- Reduce dependence and errors on workers, lower customer complaint rates, improve overall efficiency, and achieve true cost reduction and efficiency improvement.
- Modular design, Relevant equipment and functions can be added or removed according to demand， easy to expand and upgrade.
- Can interface with various front-end devices, such as counting systems, weighing systems, screening machines, visual counting machines, injection molding machines, production lines, etc
Video
Equipment Parameters
| Model | DXD-320 |
| Production speed | 10-100 bags/min |
| Packing size | W20-180mm, L30-220mm |
| Max film width | 380mm |
| Packing film material | OPP/CPP, PA/PE, PET/PE |
| Power | AC220-380V/50-60Hz/1.5kW |
| Air pressure | 0.6-0.8Mpa |
| Equipment weight | 220kg |
| Machine size | L1029mm, W718mm, H1434mm |
