Overview

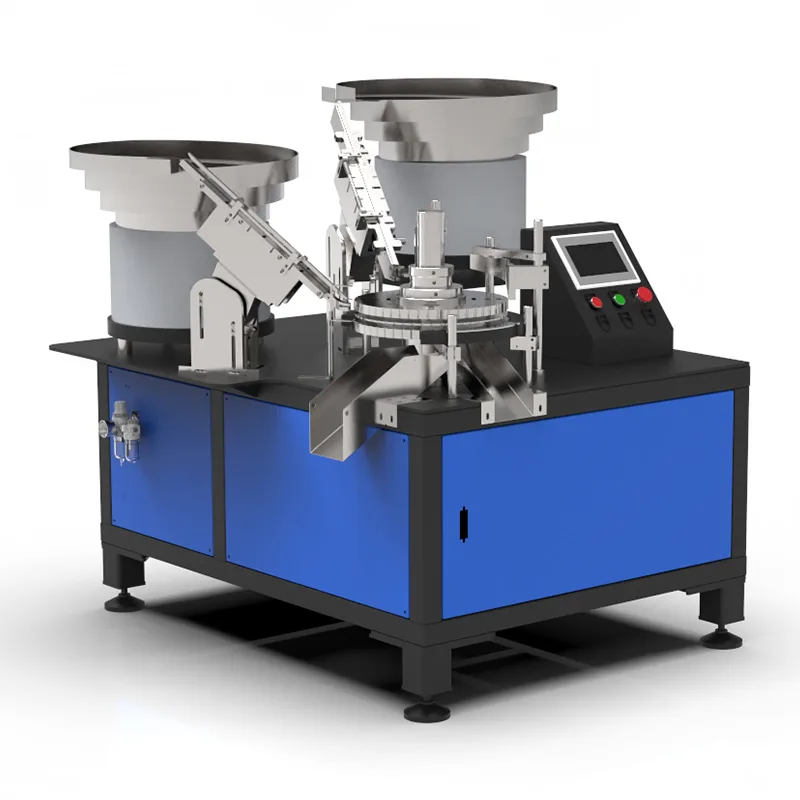

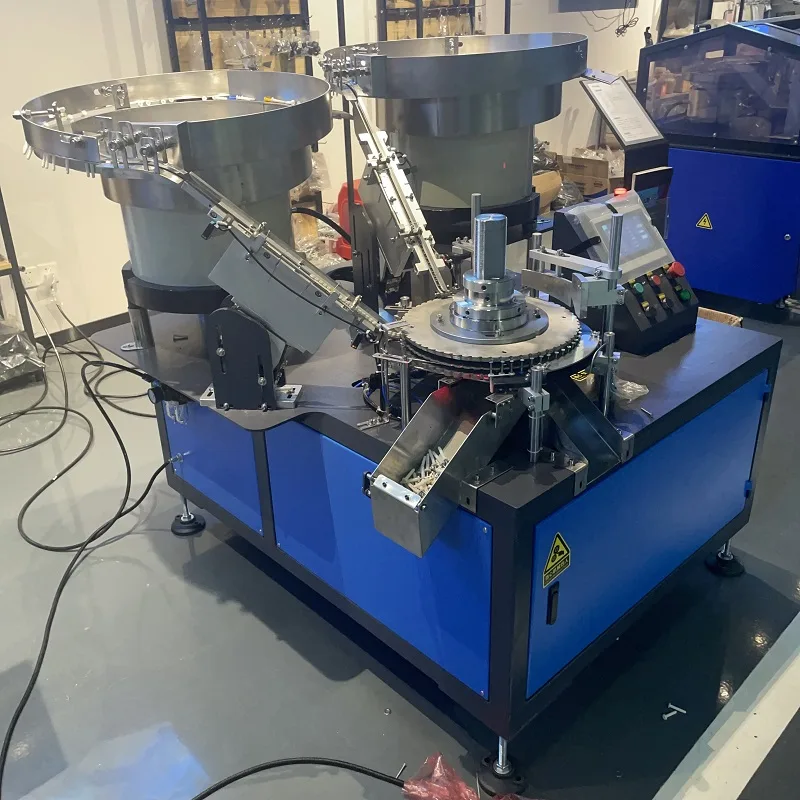

The Screw And Nylon Anchor Assembly Machine is an automated production equipment specifically designed for fasteners such as plastic anchors, nylon expansion nails, and wall plugs. It can achieve automatic sorting, screw insertion, assembly, counting, and other processes, significantly improving production efficiency.
Video
Features
- Industrial-grade construction with ergonomic design ensures long-term stable operation and easy maintenance.
- Touch screen paired with PLC control system, Formula storage and retrieval, production capacity statistics, human-machine interaction, easy to operate.
- Can automatically complete processes such as sorting, feeding, nailing, assembly, counting, etc.
- Optoelectronic automatic tracking, with no action when there is no material, shutdown alarm, etc, Ensure that every step is precise and error free.
- Advanced counting system, fast running speed, high accuracy, and strong anti-interference ability.
- Reduce dependence and errors on workers, lower customer complaint rates, improve overall efficiency, and achieve true cost reduction and efficiency improvement.
- Modular design, Relevant equipment and functions can be added or removed according to demand，easy to expand and upgrade.
Equipment Parameters
| Model | DXD-Z200A |
| Production speed | 300-600pcs/min |
| Power | AC220-380V/50-60Hz/2kW |
| Air pressure | 0.6-0.8Mpa |
| Equipment weight | 500kg |
| Machine size | L1310mm, W980mm, H1242mm |
