Overview

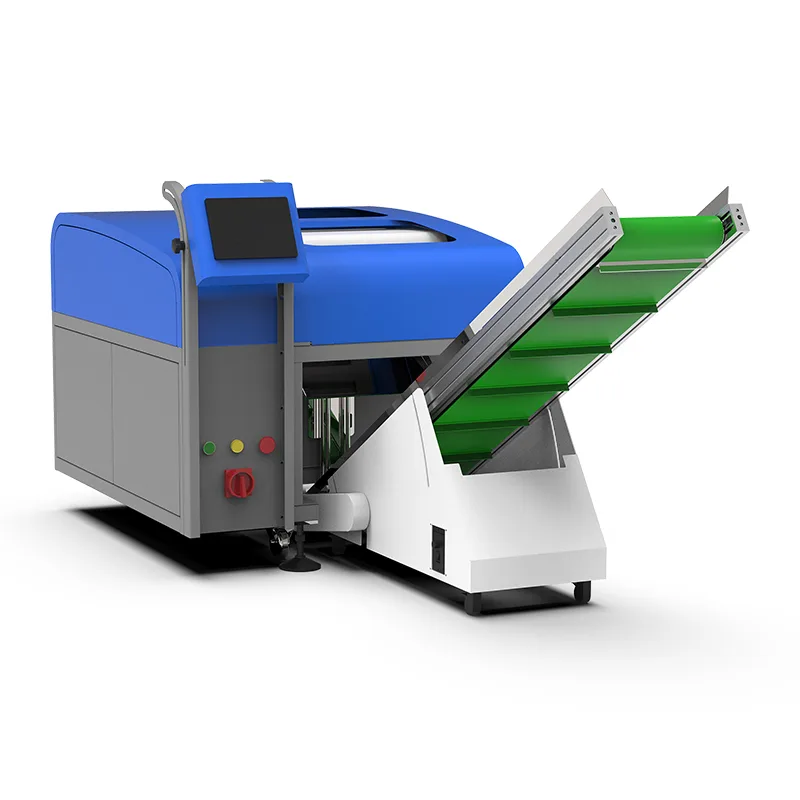

The drum film packaging machine is a multifunctional packaging machine that is easy to operate and has high stability. It is suitable for products of different weights and sizes, such as hardware, fasteners, plastic rubber, sealing rings, 3C precision small screws, small metal parts, 5G terminals, automotive parts, electronic components, shaped parts, toy accessories, home appliance accessories, lock accessories, lighting accessories, aviation accessories, sports and fitness equipment, and other different products. Compared with traditional vertical packaging machines, the biggest feature of the machine is the direct use of cylindrical films, without the need for a molding machine to form bags, eliminating the hassle of changing the molding machine when changing bag width dimensions. Moreover, with the same bag width, the volume of the cylindrical film packaging machine is smaller. Another important feature is that the machine sealing device uses a top and bottom sealing design, which can be applied to PE material bags, saving the cost of packaging film while also being more environmentally friendly.
Video
Features
- Industrial-grade construction with ergonomic design ensures long-term stable operation and easy maintenance.
- Touch screen paired with PLC control system, Formula storage and retrieval, production capacity statistics, human-machine interaction, easy to operate.
- Can automatically complete processes such as feeding, sorting, counting, bag making, loading, sealing, and finished product transportation, etc.
- Optoelectronic automatic tracking, with no action when there is no material, shutdown alarm, etc, Ensure that every step is precise and error free.
- Reduce dependence and errors on workers, lower customer complaint rates, improve overall efficiency, and achieve true cost reduction and efficiency improvement.
- Modular design, Relevant equipment and functions can be added or removed according to demand， easy to expand and upgrade.
- Can interface with various front-end devices, such as counting systems, weighing systems, screening machines, visual counting machines, injection molding machines, production lines, etc
Equipment Parameters
| Model | DXD-250 |
| Production speed | 5 bags/min |
| Packing size | W80-250mm, L400mm |
| Max film width | 250mm |
| Packing film material | PE |
| Power | AC220-380V/50-60Hz/2kW |
| Air pressure | 0.3-0.8Mpa |
| Equipment weight | 220kg |
| Machine size | L1439mm, W832mm, H936mm |
